Red has officially released their brand new 8K flagship cinema camera that is able to shoot 8K at 120 fps! When shooting at such a high resolution, the lens defects become a lot more apparent even on high-end photographic lenses which is why they have opted for the newer Canon RF mount which also has a far better lens communication system.
Here are the specs of the all-new Red V-Raptor:

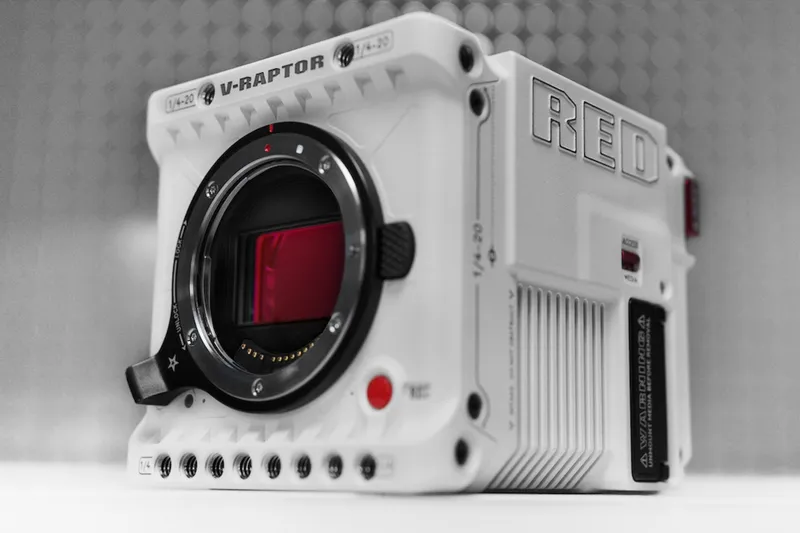

Lens Mount - Canon RF
Interchangeable Lens Mount - None
Lens Communication - Yes
Sensor Resolution (8192 x 4320) Effective: 35.4 Megapixel
Sensor Type 40.96 x 21.6 mm (Full-Frame) CMOS
Sensor Windowing 8K (8192 x 4320) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
8K (8192 x 4320) in 1.25:1 / 1.3:1 / 1.5:1 / 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic
7K (7168 x 3780) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
7K (7168 x 3780) in 1.6:1 / 1.8:1 / 2:1 When Recording in Raw / Anamorphic
6K (6144 x 3240) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
6K (6144 x 3240) in 1.25:1 / 1.3:1 / 1.5:1 When Recording in Raw / Anamorphic
5K (5120 x 2700) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
4K (4096 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
3K (3072 x 2160) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
2K (2048 x 1080) in 2:1 / 2.4:1 / 16:9 / 17:9 When Recording in Raw
Built-In ND Filter None
Shutter Type Rolling Shutter
Advertised Dynamic Range 17 Stops
Internal Recording
Raw Recording REDCODE RAW:
8192 x 4320
7168 x 3780
6144 x 3240
5120 x 2700
4096 x 2160
3072 x 1620
2048 x 1080
Recording Modes REDCODE HQ:
8192 x 4320p up to 60 fps
6144 x 3240p up to 96 fps
4096 x 2160p up to 240 fps
2048 x 1080p up to 480 fps
REDCODE MQ:
8192 x 4320p up to 60 fps
6144 x 3240p up to 160 fps
4096 x 2160p up to 240 fps
2048 x 1080p up to 480 fps
REDCODE LQ:
8192 x 4320p up to 120 fps
6144 x 3240p up to 160 fps
4096 x 2160p up to 240 fps
2048 x 1080p up to 480 fps
Variable Frame Rates 8K: Up to 120 fps
8K (Windowed): Up to 150 fps
7K: Up to 140 fps
7K (Windowed): Up to 175 fps
6K: Up to 160 fps
6K (Windowed): Up to 200 fps
5K: Up to 192 fps
5K (Windowed): Up to 240 fps
DCI 4K: Up to 240 fps
DCI 4K (Windowed): Up to 300 fps
3K: Up to 320 fps
3K (Windowed): Up to 400 fps
DCI 2K: Up to 480 fps
DCI 2K (Windowed): Up to 600 fps
Gamma Curve RED IPP2
Audio Recording 2-Channel 24-Bit 48 kHz
External Recording
IP Streaming MJPEG: 1920 x 1080
Interface
Media/Memory Card Slot -Single Slot: CFexpress Type B (CFast 2.0)
Video Connectors 2 x BNC (12G-SDI) Monitor Output
Audio Connectors 1 x 5-Pin LEMO Mic/Line Level ( 48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Headphone Output
Built-In Microphone Type Mono
Other I/O 1 x USB Type-C Data, Control, Video
1 x 9-Pin Data, Control Input/Output
Wireless Interfaces - 2.4 / 5 GHz Wi-Fi Video Output
Source - bnhphotovideo.com

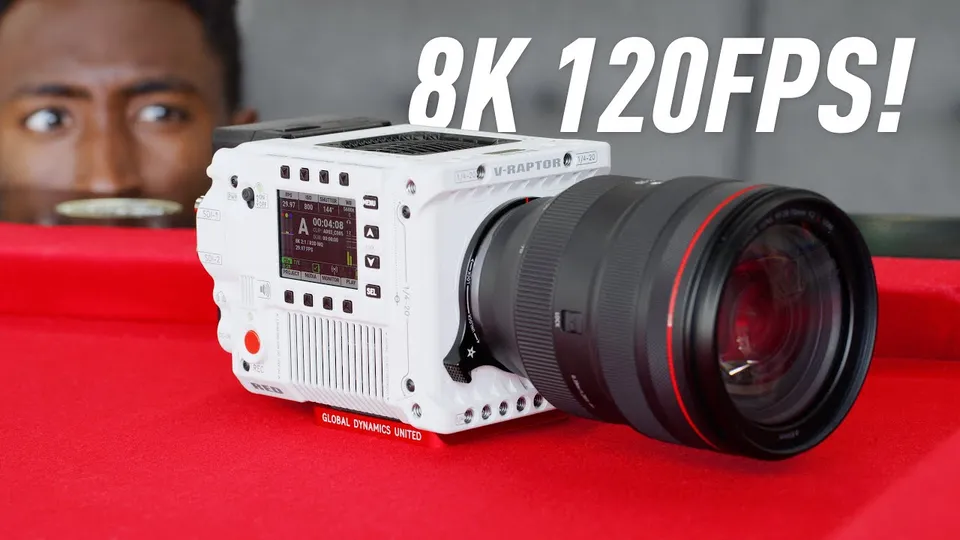

Take a look at the video below by the YouTube channel: Marques Brownlee on the Red V-Raptor Impressions: 8K 120 FPS!
